Assign class

You can assign a class to your instance in 4 ways:

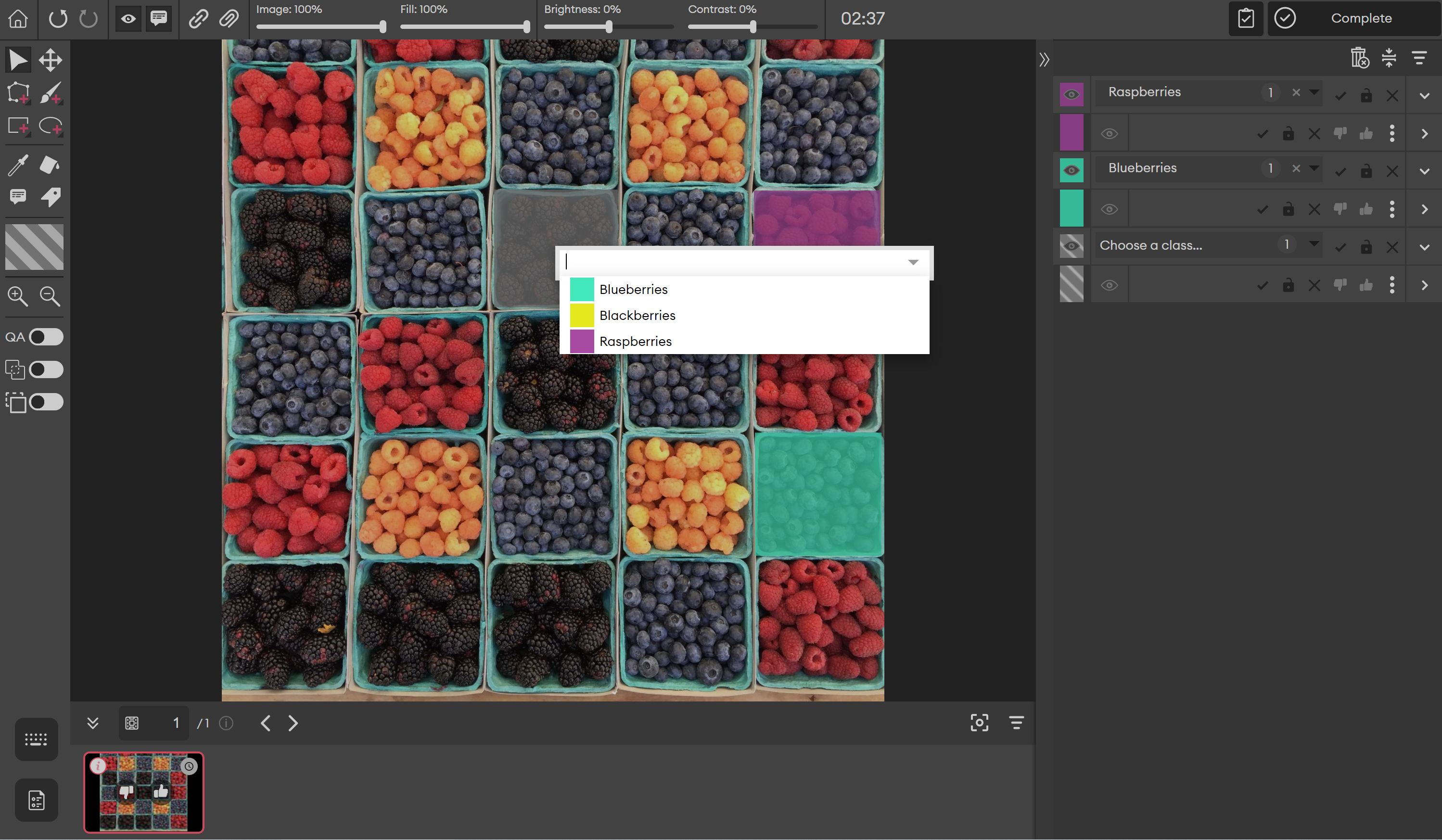

Method 1

  1. Right-click on an instance.
  2. Choose a class from the drop-down list.

Method 2

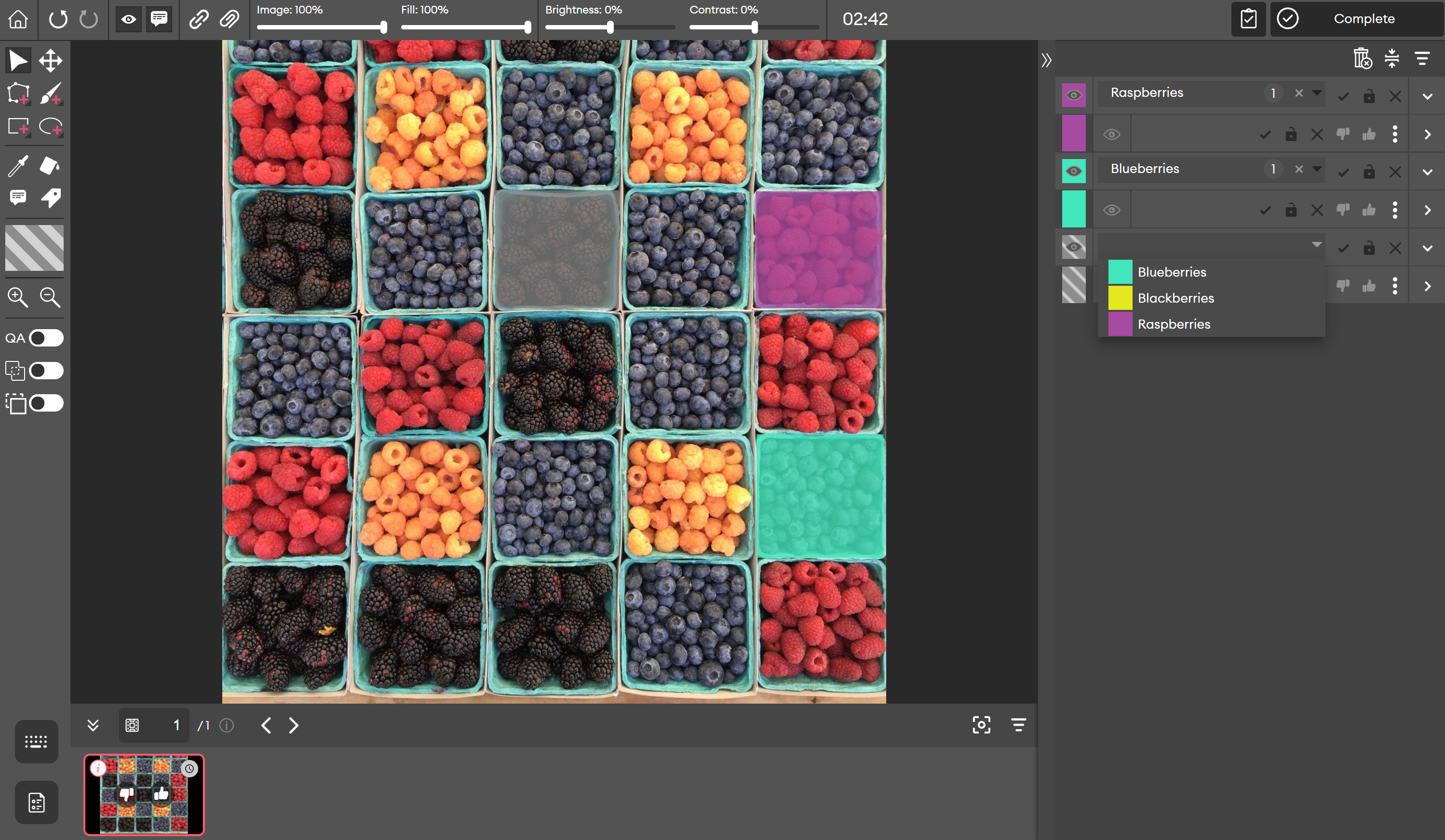

  1. Select an instance.
  2. The instance will be highlighted in the right panel. Choose a class from the drop-down list in the right panel.

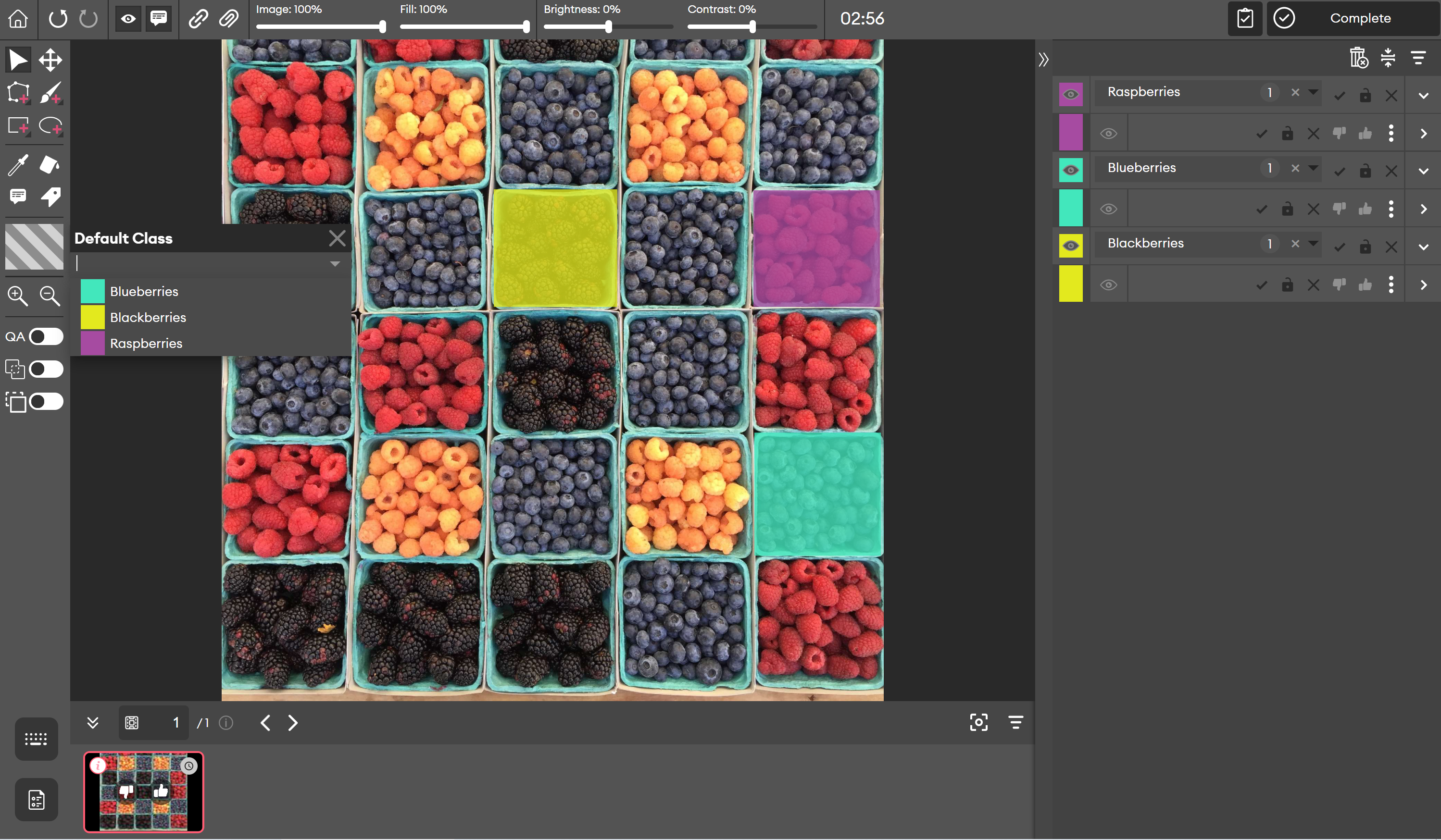

Method 3

You can choose a class before creating an instance.

  1. In the left panel, click on the Class selection feature.
  2. Choose a class from the drop-down list.
  3. Select an annotation tool.
  4. Create an instance.
  5. Press the spacebar on the keyboard.

Method 4

Use the Eyedropper tool to assign a class to multiple instances.

  1. In the left panel, select the Eyedropper tool.
  2. Select an instance to sample its class. The Eyedropper tool will change into the Bucket tool.
  3. Select on instances to assign them the class you sampled.

Change class

To change an instance's class, right-click on an instance and choose another class from the drop-down list.

Unassign class

There are 2 ways to unassign a class from an instance:

Method 1

  1. Right-click on an instance.
  2. Click the X button next to the class name.

Method 2

  1. Find the instance in the right panel.
  2. Click the X button next to the class name.
  3. In the popup, click Yes.
