Editor

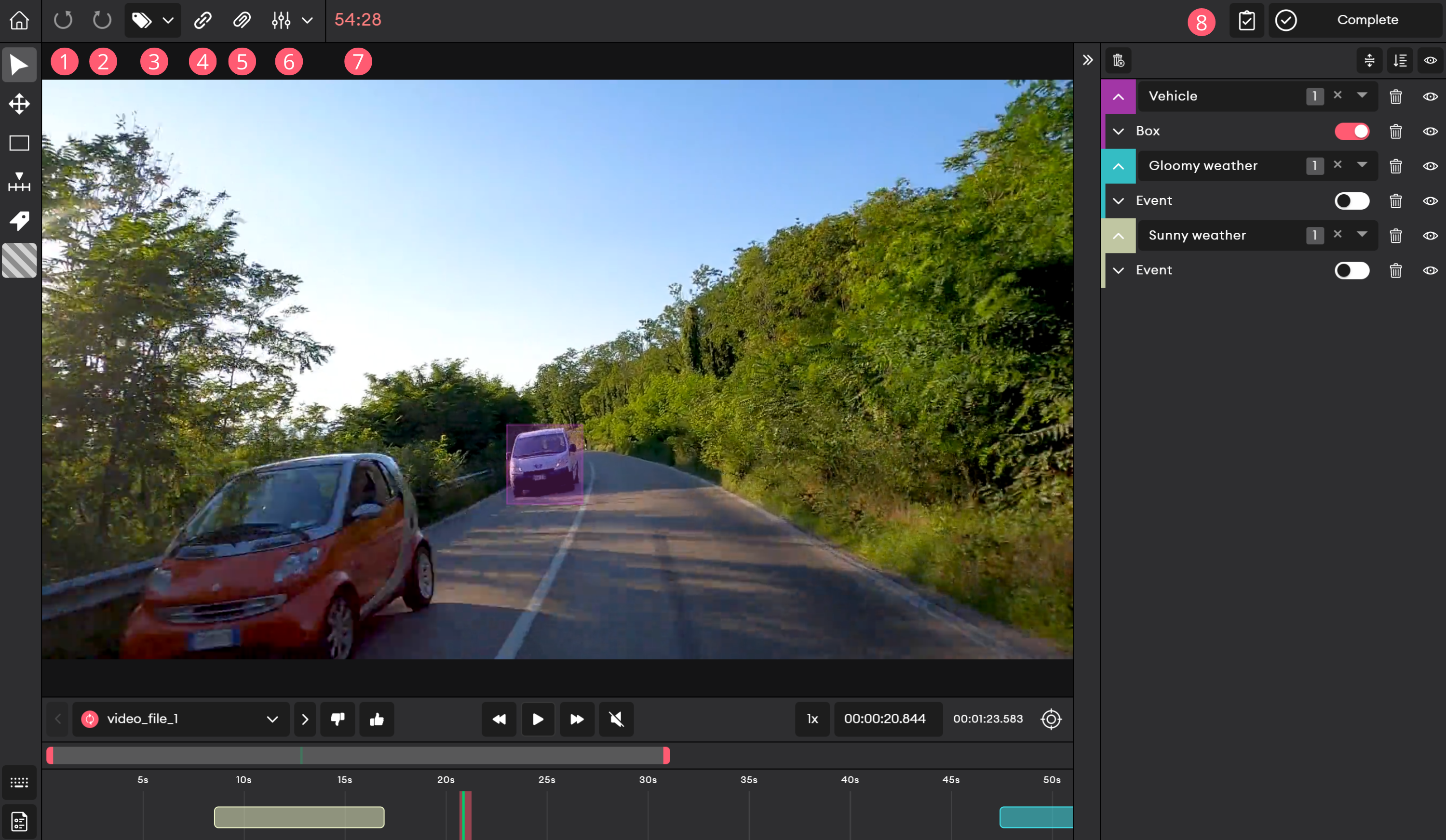

Top panel
| Tool number | Tool description |
|---|---|
| 1 | Undo action |
| 2 | Redo action |
| 3 | Revert |
| 4 | Show/Hide instance labels |
| 5 | Instructions link |
| 6 | Instructions file |
| 7 | Filters |
| 8 | Time spent in the editor (per user) |
| 9 | Status change |

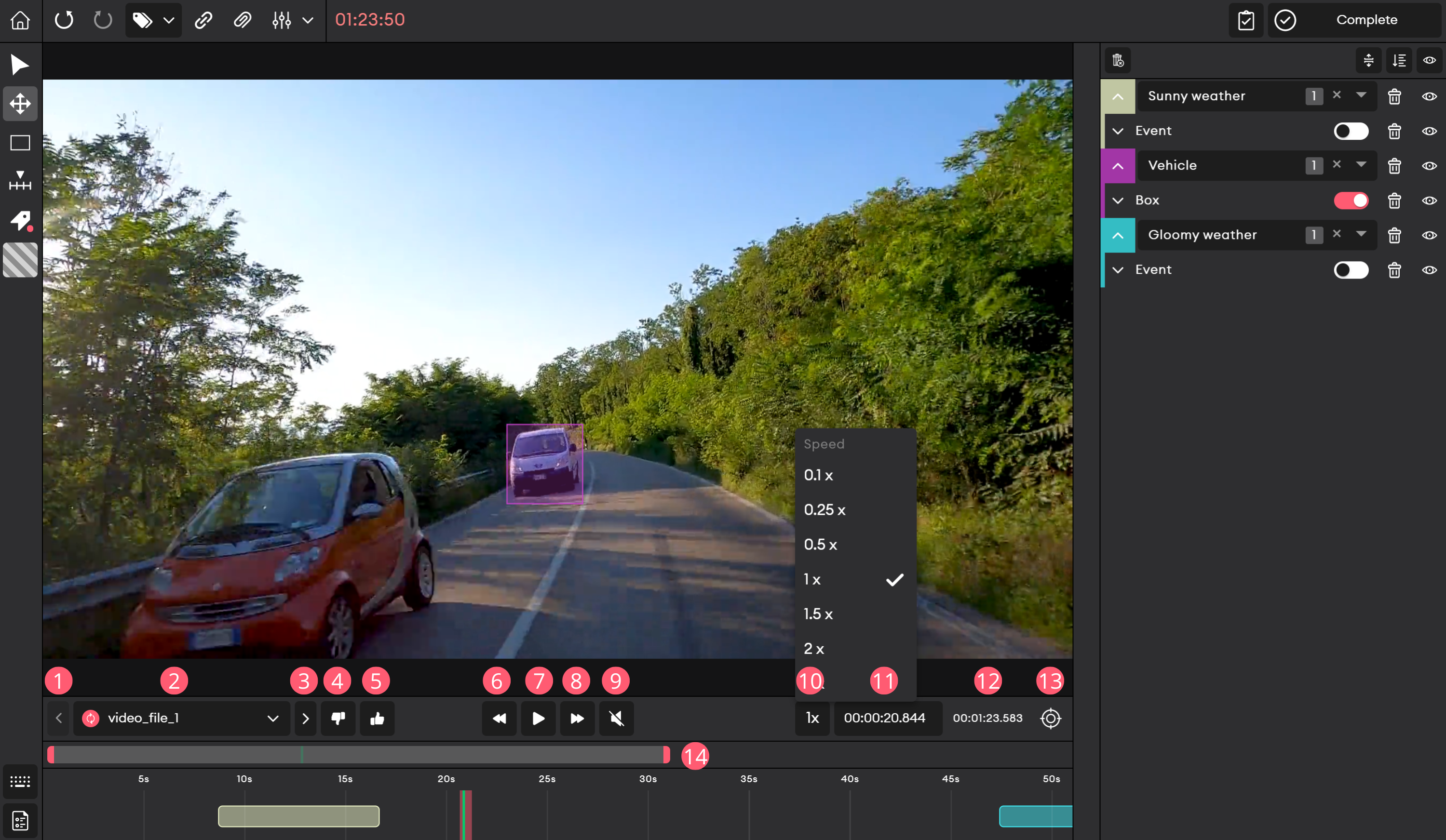

Bottom panel
| Tool number | Tool description |
|---|---|
| 1 | Switch to the previous item |
| 2 | List of items in the project |
| 3 | Switch to the next item |
| 4 | Disapprove item |
| 5 | Approve item |
| 6 | Jump 1 second backward |
| 7 | Play/Pause item |
| 8 | Jump 1 second forward |
| 9 | Mute/Unmute item |
| 10 | Item speed |
| 11 | Jump to X timestamp. The timestamp in the editor is a rounded number and it's displayed in milliseconds whereas it's exported as a precise number in microseconds. |
| 12 | Total duration of the item |
| 13 | Go to current time |
| 14 | Timeline. Resize it by dragging the slider to change the unit of measurement of the item duration. |
Right panel
| Tool number | Tool description |
|---|---|
| 1 | Expand/Collapse all the instances |
| 2 | Sort the list by creation date, group size, class name, or timestamp. |
| 3 | Delete all the instances in the item |
| 4 | Show/Hide the instances |
| 5 | Class name |
| 6 | Instance type |
| 7 | Add instance section |
| 8 | Delete instance |
| 9 | Show/Hide instance |
Left panel
| Tool number | Tool description |
|---|---|
| 1 | Select object |
| 2 | Drag |
| 3 | Bounding box |
| 4 | Event |
| 5 | Tag item |
| 6 | Class selection |
| 7 | Keyboard shortcuts |
| 8 | Documentation |
