Assign class or attribute

You can assign a class/attribute to your instance in 4 ways:

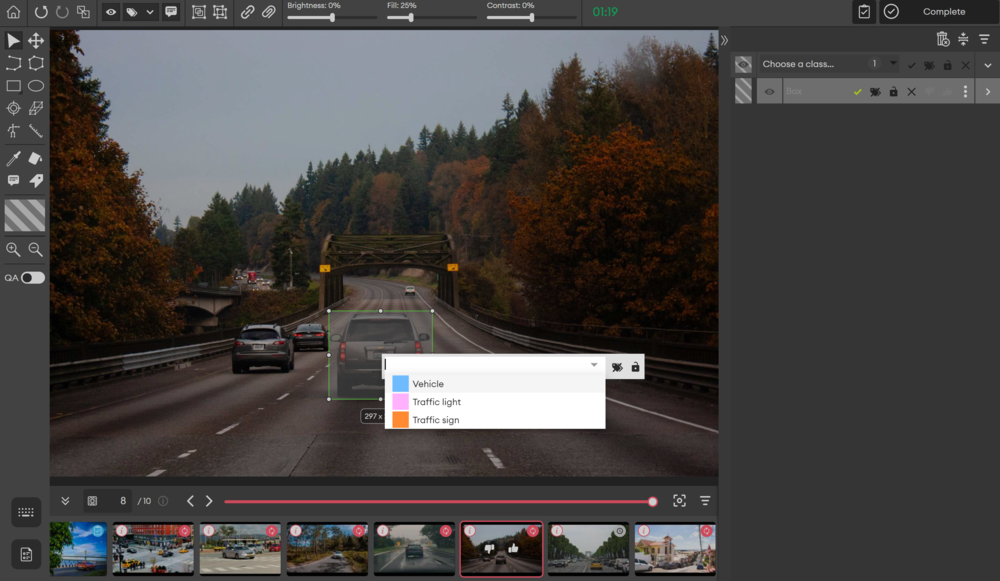

Method 1

  1. In the Vector Editor, right-click on an instance.
  2. Choose a class/attribute from the drop-down list.

📘

You can use Method 1 to assign a class/attribute to multiple instances at the same time.

  1. Select an instance.
  2. Press Ctrl on the keyboard.
  3. Select other instances.
  4. Right-click on any of the selected instances and choose a class from the drop-down list.

Method 2

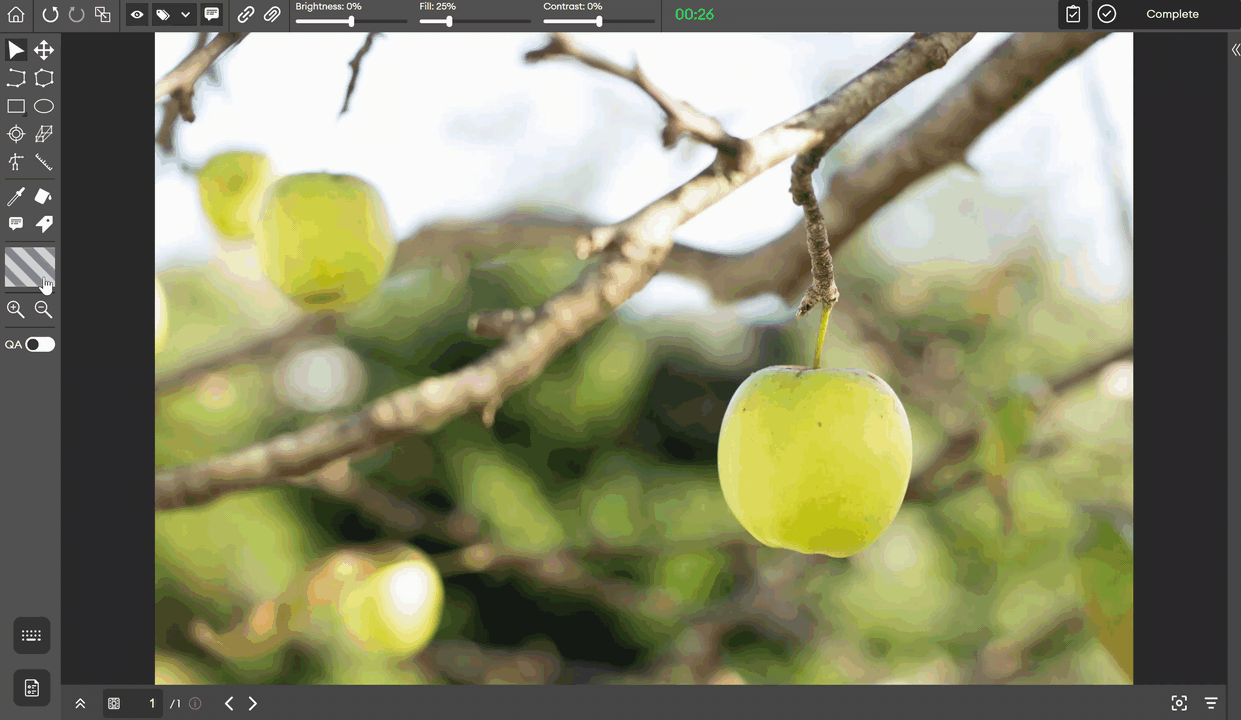

Use the Eyedropper tool to assign a class/attribute to multiple instances.

  1. In the left panel, select the Eyedropper tool.
  2. Select an instance to sample its class. The Eyedropper tool will change into the Bucket tool.
  3. Select on instances to assign them the class you sampled.

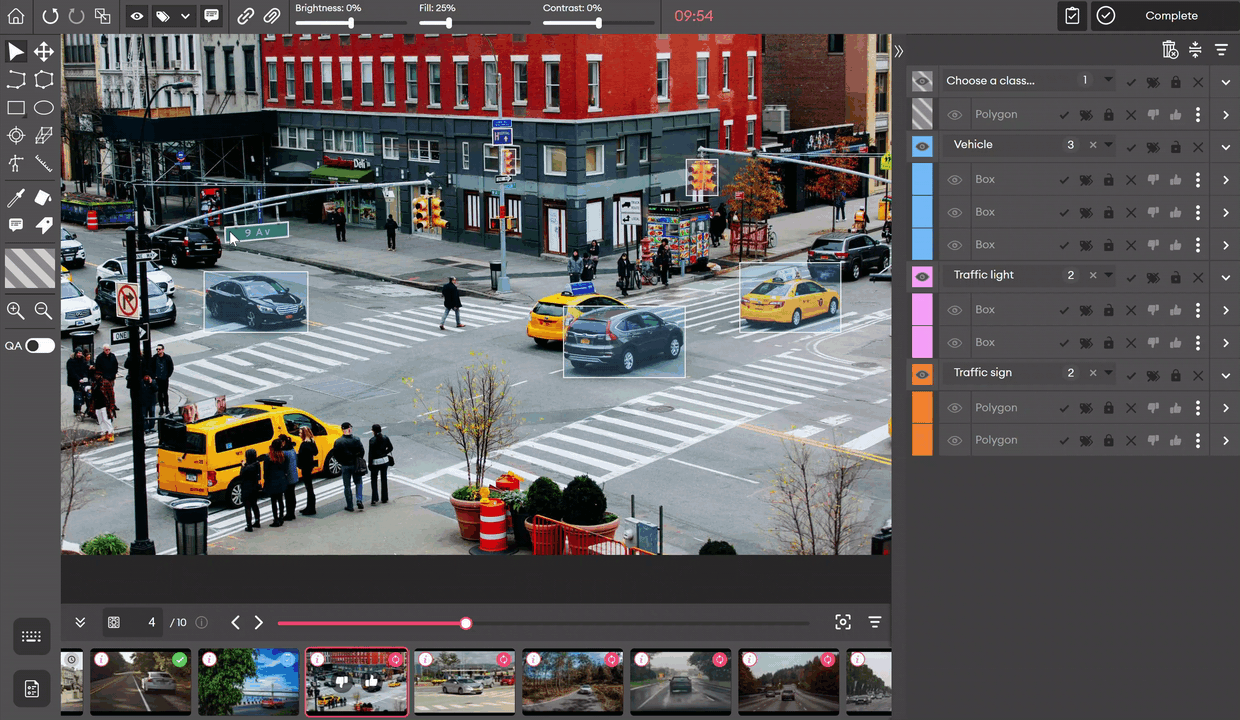

Method 3

You can choose a class before creating an instance.

  1. In the left panel, click on the Class selection feature.
  2. Choose a class from the drop-down list.
  3. Select an annotation tool.
  4. Create an instance. You can add an attribute or multiple attributes (if allowed) later on.

Change class or attribute

To change an instance’s class/attribute, right-click on an instance and choose a class/attribute from the drop-down list.

Unassign class or attribute

To unassign a class from an instance:

  1. Right-click on an instance.
  2. Click X next to the class name.

To unassign an attribute from an instance:

  1. Right-click on an instance.
  2. Under Attributes, click X next to the attribute name.
